ASD60
Flow Rate：0.01mm/s-60mm/s
Online consultation
Download

Product Introduction

ASD60 syringe pump is a programmable precision liquid handling device. Linear speed range: 0.01mm/s-60mm/s. Controlled by computer or microcontroller, replace the traditional operation of diluting and dispensing. Widely used in blood, chemistry, food and environment analysis.

  • Unmatched application flexibility: Fully programmable; Can be controlled by an external computer or microprocessor; Available with a range of syringe sizes and valve configurations.
  • Faster product development: Can speed up and simplify validation of your instruments.
  • Robust performance: Optical encoder for step loss detection; Full control of start speed, top speed and cut-off speeds; Programmable ramp-up and ramp-down rates; Planned maintenance replacement of valves and syringes.
  • Straight forward integration: RS-232/RS-485 communication interfaces; Up to fifteen ASD60 pumps can be connected together; Two digital inputs and three outputs for TTL level signals; Used for synchronization with external devices.

Technical Parameter

Accuracy Error ≤±0.1%(stroke≥30% maximum stroke)
Max. stroke(Steps) 60mm(6000 steps or 48000 steps)
Linear speed range 0.01mm/s-60mm/s
Run time per stroke 1.25s-100min
Speed resolution 0.01mm/s
Stroke resolution 0.01mm or 0.00125mm
Valve switch time ≤250 ms between adjacent ports
Valves type 3 port valve, 4 port valve, 3 port distribution valve, 9 port distribution valve
Valve material Valve body: PCTFE; Valve element: PTFE
Tubing fittings 1/4-28UNF
Syringe fittings 1/4-28UNF
Power supply DC24V±10%/1.25A(Peak value)
Communication interface RS232/RS485/CAN
Syringes 50μL,100μL,250μL,500μL,1.0mL,2.5mL,5.0mL,10mL,25mL
Syringe material Barrel material: Borosilicate glass; Plunger rod material: Stainless steel; Plunger seal material: PTFE
Baud rate 9600 or 38400(RS232/RS485); 100K,125K,250K,500K,1M(CAN)
Addressing UP to 15 individual addresses available(BCD switch)
Input Two TTL level signal inputs, for restart the paused instruct
Output Three TTL level signal outputs, for synchronous external devices
Max.pressure 0.68MPa(High pressure above 0.68MPa, please contact us)
Condition temperature 15℃~40℃(Low temperature operation requires a low temperature syringe)
Storage temperature -20℃~65℃
Relative humidity 80%(RH)
Dimension(mm) 147.4 * 85 * 278.9(L*W*H)
Weight 3.25kg

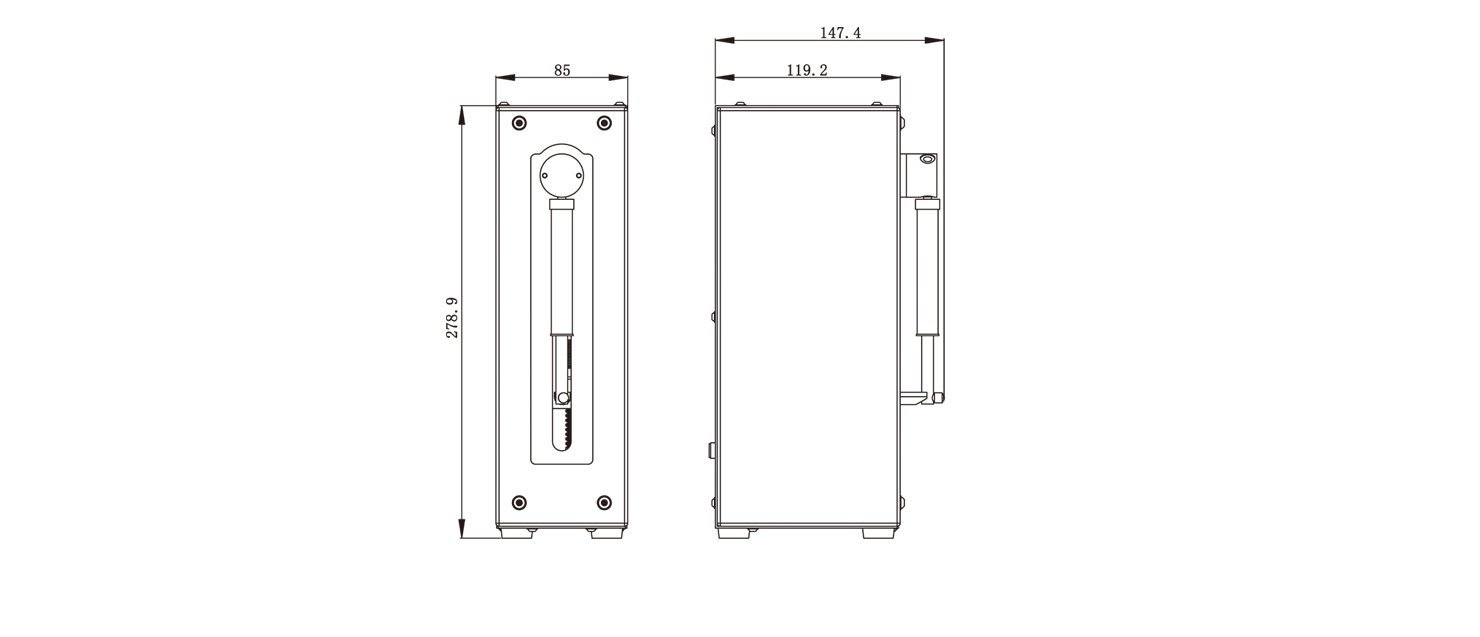

Dimension（Unit：mm）
