ISPLab12
Flow Rate：0.2nL/min-26.177mL/min
Online consultation
Download

Product Introduction

The intelligent syringe pump with infusion/withdrawal mode, stainless steel body, and 4.3" color LCD screen is easy to operate. It can install and fix different types of injectors or syringes, and it is suitable for transferring micro flow rates with high precision (non-medical).

  • Online flow rate modification function: the pump is running, without stopping, adjust the flow rate at any time to meet complex application.
  • Colorful LCD display: Friendly interface, large-screen LCD display every technical parameter in real time.
  • Input injector inner diameter function: Can choose the injector from the list or input the injector inner diameter directly.
  • Two measurement modes for selection: Infusion volume --- Infusion rate, Infusion volume --- Infusion time.
  • 4 different working modes: Infusion, withdrawal, infusion/withdrawal, withdrawal/infusion, continuous and additional mode (infusion/withdrawal, then exclude bubble). The parameters of each working mode saving separately.
  • Protection function: The pump will stall and give an alarm when the drive structure of the pump is blocked.

Technical Parameter

Working mode Infusion，withdrawal，infusion/withdrawal，withdrawal/infusion
Channel number 12
Syringe size 10μL-10mL
Syringe selection Syringe size and customized diameter
Linear speed range 1μm/min-132mm/min (Flow rate=Linear speed * syringe inner cut area)
Min. linear rate 1μm/min
Linear force ≤25kgf
Max. stroke 140mm
Stroke resolution 0.078μm/step
Accuracy Error≤±0.3%(Stroke≥30% of maximum stroke)
Back distance 0.01-10mm
Stored modes Can save at most 60 modes
Display Industrial grade 4.3" LCD color display
Control method Touch screen and Mechanical keypad
Power-off memory Display the previous data parameter after power supply again
Output OC gate signal output, used to indicate running status and direction
External control Start/stop signal, withdrawal and infusion signal, active switch signal (5V-24V)
Start/stop signal, passive switch signal, such as foot pedal switch
Communication interface RS232/RS485, Modbus protocol(RTU mode)
Power supply AC90-264V/65W
Condition temperature 0-40℃
Relative humidity <80%
IP rate IP31
Dimension(mm) 282*325*175
Weight 5.38kg

Applicable Syringes

Plastic Syringe
 Inside Diameter(mm) Flow Rate(μL/min-mL/min)
ISPLab01/ISPLab02 ISPLab04-ISPLab12
1.0mL 4.70 0.0173-2.2889 0.0173-2.2889
2.0mL 8.95 0.0628-8.3002 0.0628-8.3002
5.0mL 12.36 0.1199-15.8299 0.1199-15.8299
10mL 14.90 0.1742-23.0046 0.1742-23.0046
20mL 19.20 0.2893-38.1984 ——
30mL 22.00 0.3799-50.1520 ——
50mL 29.20 0.6693-88.3505 ——
60mL 29.20 0.6693-88.3505 ——
100mL 32.00 0.8042-106.1544 ——
150mL 40.00 1.2566-165.8712 ——

Micro Syringe Inside Diameter(mm) Flow Rate(nL/min-μL/min)
ISPLab01/ISPLab02 ISPLab04-ISPLab12
0.5μL 0.10 0.008-1.0296 ——
1μL 0.15 0.018-2.3232 ——
2μL 0.20 0.031-4.1448 ——
5μL 0.35 0.096-12.6984 ——
10μL 0.50 0.2-25.8 0.2-25.8
25μL 0.80 0.5-66.4 0.5-66.4
50μL 1.10 1-125.4 1-125.4
100μL 1.60 2-265.4 2-265.4

OSD

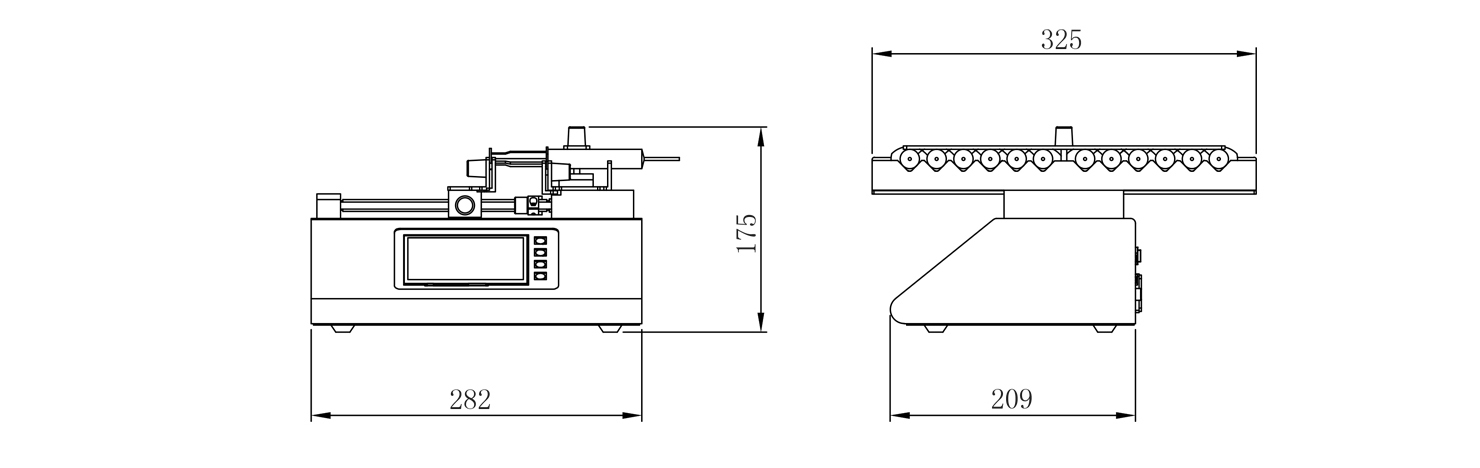

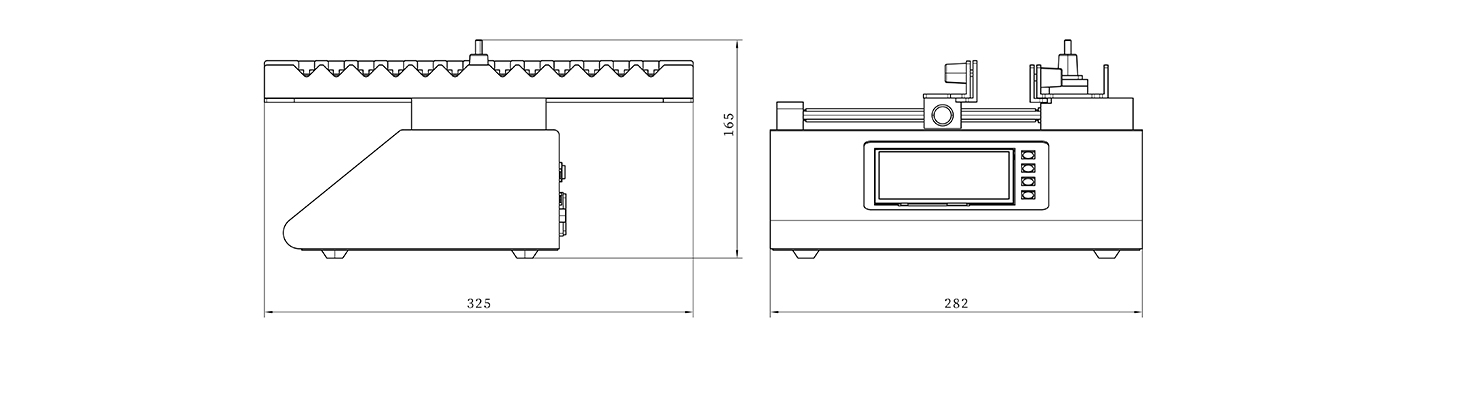

Dimension（Unit：mm）
