The MIX60 stirring syringe pump is equipped with a magnetic stirring system that can rotate and move linearly, which can drive the stirrer inside the syringe to rotate and move reciprocally, thereby uniformly stirring the fluid inside the syringe.



The pump is suitable for transferring various suspensions in various fields, such as pharmacy, biology, chemistry, energy, etc.



-10ml glass syringe available, flow rate range 0.66μL/min-22mL/min

-Simple programming available, up to 20 working steps configurable

-Syringe and stirring system can be controlled independently

-With limit protection to prevent system damage

-Stirring speed adjustable, for stirring different media

-Automatically change reciprocating distance as the amount of liquid in syringe decreases

• Stirring function：Stirring the liquid inside the syringe, realize special application.
• Independent control the stirring system and syringe：The start or stop of syringe and stirring system can be controlled separately.
• Calibration and On-line fine-tuning function：Through the calibration procedure, users can control the liquid volume more accurately.
• Power-off memory：No need to reset parameters after power on again.
• Block protection function：The pump will stall and give an alarm when the drive structure of the pump is blocked.
• Sensor limit protection：During operation, if the syringe or stirring system exceeds the limit position, it will automatically stop and alarm to protect the system from damage.

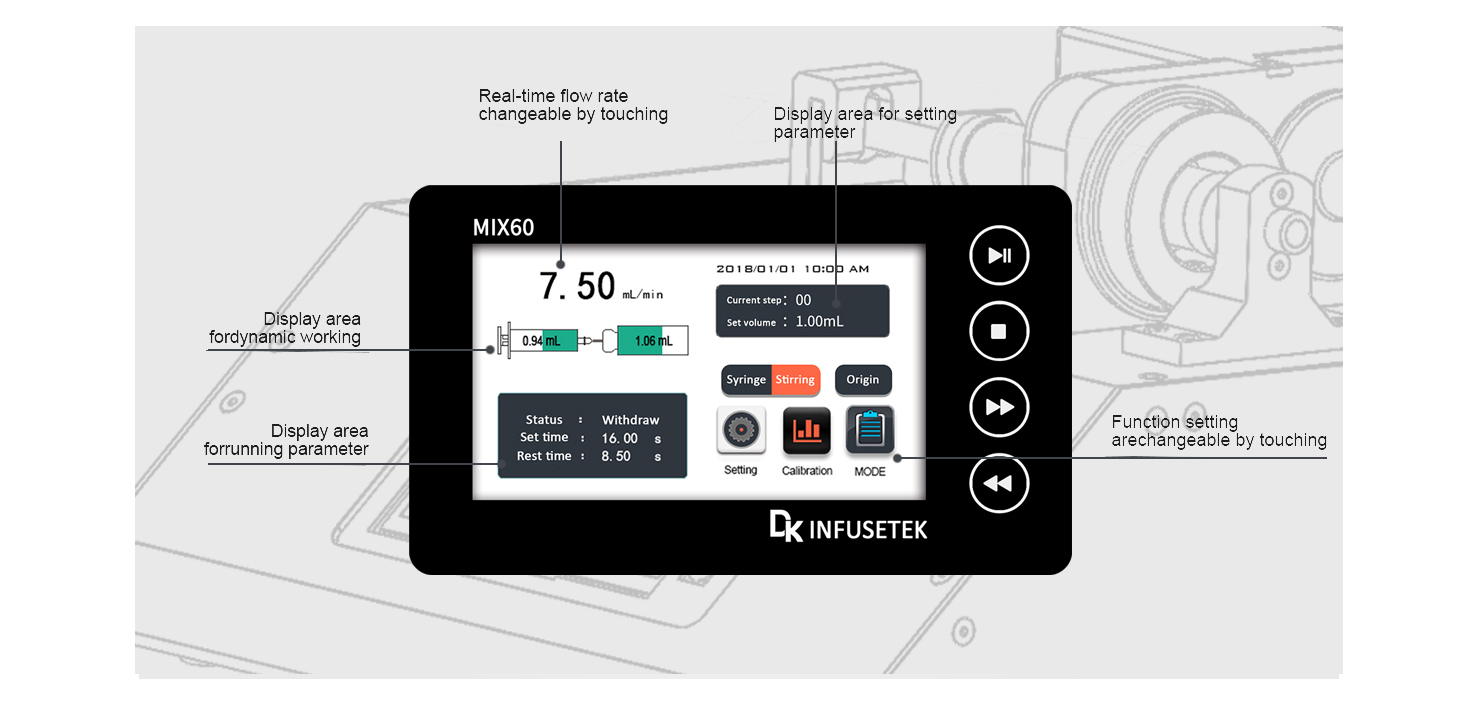

• View steps interface：Check all the operation parameters of currently setting steps.
